ILIM59801
Price: $188.00 EachIn Stock (26)

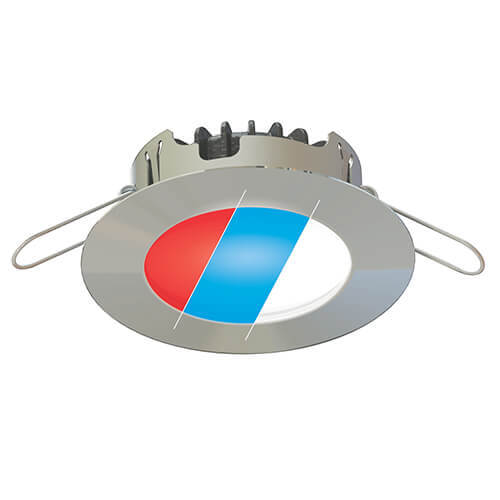

Blade PowerLED Tri-Color, 10-40VDC, Polished SS, Red/Blue/Cool, 5.0W, IP65

Overview
Features
Specifications

The Tri-Color Series is a comprehensive range of recessed and surface-mount downlights featuring the ability to select from three different LED colors of Red/Blue/Cool White. Only two wires provide both power to unit(s) and signal to change colors. Advancing through the colors is achieved by toggling a (user supplied) single on/off switch. Choose from a wide range of bezel styles and different mounting methods. Spring mount-models are recommended for interior spaces and soft panel headliners. The screw-mounted fixtures provide exceptional sealing and are recommended wet areas or for exterior applications. Made in the USA and covered by a 5 year warranty!

ILIM59801 is the closest substitute for the no longer available ILIM59501 (BLADE POWERLED, S.S. CW/RED , 10-40VDC) and ILIM59502 (BLADE POWERLED, BRUSHED SS, CW/RED , 10-40VDC). Please note that the changing color function of the ILIM59801 uses a 1P/1T - On/Off switch where the ILIM59501 and ILIM59502 needed a 3-Position Switch - 1P/2T On/Off/On.

Select between Red, Blue and high-brightness white
Just 2 wires to control power and color selection
Control via (user-provided) single On/Off switch
10-40VDC input voltage (12/24/32VDC systems)

Name	Description
Housing Finish/Material	Black Electrophoretic Aluminum
Certifications & Compliance	CE-EMC, ROHS
Integrated Switch	No
Output Color	Red/Blue/Cool White
Lifetime Hours	50,000 hrs
Class	Class III
Dimmer Compatibility	Non-Dimmable
Dimmer Control Interface	NOT DIMMABLE
Cut-out Dimensions	2.65" (67mm)
Trim Ring (Bezel) Dimensions	3.63" (92mm) dia
Trim Ring (Bezel) Finish/Material	Polished stainless steel
Halogen Equivalency	25W
Manufacturers Part No	ILIM59801
Input Voltage	10-30VDC
Warranty	5 Years / 1 Year Finish
Dimensions	See dimensional drawing
Power Consumption	5.0W
Recessed Depth	1.09" (28mm)
Lens Material	Frosted glass
Ingress Protection	IP65 (applies only to frontal water exposure, i.e. Exposed surface)
Dimming Range	5-100%
Luminous Flux	197 lms
Driver	Integrated
Install Location	Ceilings (interior)
Electrical Protections	Reverse Polarity, Transient & Spike Protection
Correlated Color Temperature (CCT)	6000K (White LED)
Color Rendering Index (CRI)	85
Approximate Ship Weight (lbs)	1

Warning:

ATTENTION CALIFORNIA RESIDENTS

Cancer and Reproductive Harm-

www.P65Warnings.ca.gov

QTY:

ADD TO CART

Downloads

Product Catalog

Compatibility Chart

Installation Instructions

Dimensional Drawing

Product Sheet

Marine Downlights

Welcome to our Marine Downlights Collection, equally suitable for RV or van enthusiasts, where we illuminate your boating and recreational vehicle experience with cutting-edge lighting solutions. Our downlights not only enhance visibility and safety but also add a touch of elegance to your interior and exterior spaces.

Marine Downlights Frequently Asked Questions

What is the Purpose of Marine Downlights?

Marine downlights serve the purpose of illuminating the interior and exterior areas of boats and recreational vehicles. They enhance visibility and create a cozy atmosphere, making them an essential part of your boating experience.

How Energy-Efficient Are LED Downlights?

LED downlights are eco-friendly and consume considerably less power compared to traditional lighting. This makes them highly energy-efficient and helps extend battery life, making them an ideal choice for marine and RV or van applications.

Can Marine Downlights Withstand Harsh Weather Conditions?

Yes, our marine downlights are designed to be weatherproof, ensuring durability even in challenging conditions like rain, saltwater, and UV exposure.

How Do I Install Marine Downlights?

Installation is typically straightforward, involving mounting and electrical connections. Detailed installation instructions are provided with our products for easy setup.

Is Dimming Possible for Marine Downlights?

Certainly, a majority of our LED downlights are equipped with dimming capabilities, enabling you to customize brightness for your preferred ambiance and energy conservation.

What Types of Marine Downlights Do We Offer?

Our selection encompasses an extensive range, including recessed, surface-mounted, LED lights, and more, designed to address diverse lighting requirements in marine or RV and van applications.

How Long Do LED Marine Downlights Last?

LED marine downlights offer remarkable longevity, often exceeding tens of thousands of hours of use. This extended lifespan minimizes the necessity for frequent replacements, making them a cost-efficient and practical lighting choice for marine use.

Do Marine Downlights Come With a Warranty?

Yes, our downlights typically come with a warranty. Check out our warranty summary sheet or contact us today for more information.
