DH230CSL21-DO
Price:$3,080.00 EachIn Stock (4)

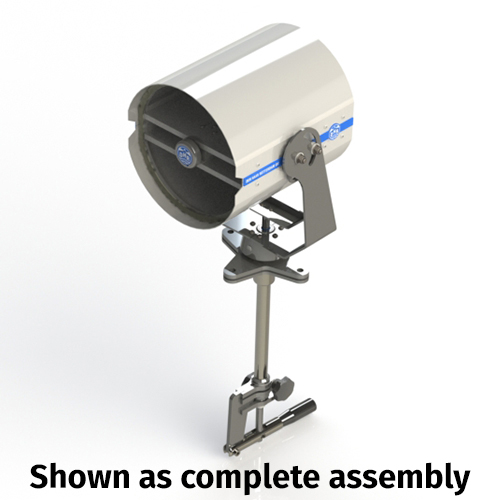

DHR230-Cabin Controlled Searchlight 230mm 90-305 75W, White Powder Coated Aluminum (Drum Only)

Note:
  • Overview
  • Features
  • Specifications

The 230CSL LED searchlight is a great addition to the DHR LED family. With its compact design, the DHR230 cabin controlled searchlight is a perfect solution for tugs, workboats, and inland vessels that require a cabin controlled searchlight. The searchlight is equipped with a silver-plated mirror which provides an optimal beam. The bracket cabin control is used for operation from the wheelhouse. With its high angle of tilt (+/- 40 °), it is very suitable to position high above the waterline.

Cabin control (DHSA10300) and push-pull rod need to be ordered separately.

  • Excellent optics
  • Lightweight construction
  • Robust design
  • Waterproof IP66
NameDescription
Light Intensity600,000 candela
OpticsLED w/ Parabolic Mirror Reflector
Input Voltage90-305VAC
FinishWhite Powder Coated Aluminum
Power Consumption75W
MaterialsAluminum
Ingress ProtectionIP66
Light TechnologyLED
Ingress Protection Rating (IP)IP65+
Approximate Ship Weight (lbs)35
