Price:$135.00 EachIn Stock (8)

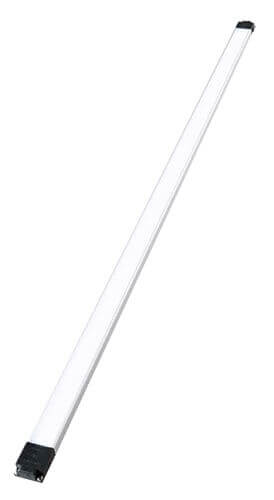

F-40.2 Line, Cool White LED, 10-30VDC, 18W, IP50 Surface-Mount Linear Fixture, 37", w/switch
  • Overview
  • Features
  • Specifications

Surface-Mount Linear Fixture, 37"

A complete family of super thin surface-mount  LED Linear fixtures, the F40 LED Line offers extreme luminaire efficiency and superior photomteric qualities. Using the latest wide angle optics and light-blending diffusers, the F40 fixtures will provide bright white neon-like illumination with no trace of "dots" or other distracting "artifacts". The F40 is ideal for under-cabinet lighting but also popular for enginerooms and utility spaces as well.

  • Super thin, low-profile design
  • Easily mounts to any surface with just four screws (included)
  • A+ Energy Efficiency rating (EU-Directive 87412012)
  • Completely blended, neon-like illumination
  • Models available with or without switch
  • Choose between warm or cool white models
  • Anodized aluminum housing for excellent thermal managemet

Housing Finish/MaterialAnodized aluminum, Black PCB End Caps
Certifications & ComplianceCE-EMC, ROHS, F-Rated
Integrated SwitchYes
Output ColorCool White
Lifetime Hours50,000 hrs
ClassClass III
Dimmer CompatibilityNon-Dimmable
Halogen Equivalency130W
Manufacturers Part NoIL4009
Input Voltage10-30VDC
Dimensions37" (935mm) x 1.18" (30mm) x 0.51" (13mm)
Warranty3 Years
Lens MaterialAcrylic
Power Consumption18W
Ingress ProtectionIP50
Beam Angle90°+
Overall Height (with shade)0.51" (13 mm)
Luminous Flux1400 lm
DriverIntegrated, current-controlled
Install LocationInterior: Surface-Mount
Electrical ProtectionsReverse Polarity, Transients, EMC
Correlated Color Temperature (CCT)6000K
Color Rendering Index (CRI)85
Approximate Ship Weight (lbs)2
