IL-LED450WDC24V
Price:$310.00 EachIn Stock (2)
LED Converter: 90-240VAC to 24VDC, 450W

  • Overview
  • Features
  • Specifications
LED Converter: 90-264VAC to 24VDC, 450W

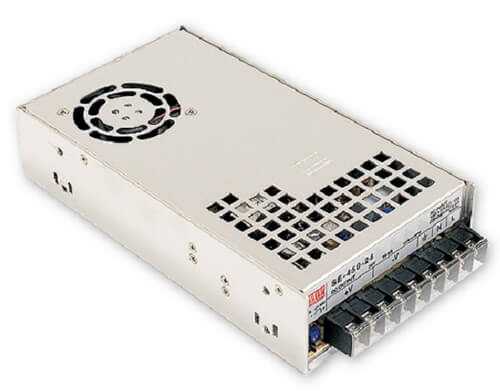

The SE-450 Power Supply features a universal selectable AC input (90-264VAC) and adjustable DC output (21.6-28.5VDC) providing clean voltage-regulated DC power; ideal for sensitive electronics and LED lighting.
Features & Benefits:

  • Selectable AC input
  • Adjustable DC output
  • Short circuit & over-current protection with auto-reset
  • Over temperature protection with auto-reset
  • Active surge current limiting
  • Forced air cooling - DC ball bearing fan
  • Compliant to worldwide safety regulations

NameDescription
Certifications & ComplianceEMC (RFI): FCC Class B/EN 55015/61100, 61547, EN50204/55024
Input Voltage90-264VAC (115V/230V selectable)
Dimensions8.86 x 4.88 x 1.97 in. (225 x 124 x 50mm)
Warranty2 Years
Power Capacity450W
Output voltage24VDC
Ingress ProtectionIP20
Mounting MethodChassis
Max Operating Temperature122° F (50° C)
Operating Frequency47-63Hz
Max Housing Temperature176° F (80° C)
Efficiency86%
Electrical ProtectionsShort Circuit, Over Current, Over Voltage, Thermal
Install LocationWithin 30' of last light fixture
Approximate Ship Weight (lbs)1
