Sleipner Commercial Thrusters

Thrusters That Get the Job Done

For more than 40 years, Sleipner has set the standard for marine thruster technology, delivering reliable, high-performance maneuvering solutions for the world’s most demanding commercial vessels. Engineered in Norway and trusted globally, Sleipner commercial thrusters are built to perform in harsh operating conditions.

Have commercial thruster questions or need product support? Contact us: [email protected]

Engineered for Maximum Efficiency and Reliability

Every Sleipner thruster is designed with performance, efficiency, and longevity in mind. Key design features include:

Hydrodynamic gearlegs that minimize drag and resistance, maximizing overall system efficiency
Clean, streamlined housing design to optimize water flow and reduce turbulence
Optimized tunnel and propeller geometry for maximum thrust output
5-blade bronze Q-Prop™ propellers for:
- Reduced noise and vibration
- Increased efficiency and thrust
- Lower risk of cavitation
- Smooth, predictable maneuvering

Comprehensive Thruster Solutions for Commercial Applications

Sleipner offers one of the industry’s most complete ranges of commercial thrusters, covering everything from compact workboats to large commercial vessels:

Hydraulic Thrusters:
Available in tunnel diameters from 7¼” to 29”, delivering 220 lbs up to 4,800 lbs of thrust for precise, powerful maneuverability.
AC Thrusters:
Offered in 10” through 29” tunnel sizes, providing dependable performance for larger vessels and continuous-duty applications. A new Permament Magnet motor option will be available for the larger sizes (700 kg thrust/16" (410 mm) tunnel sizes and up.
DC Thrusters (E-Series)
Proportional 24V and 48V DC thrusters in 8½”–12” tunnel sizes, delivering up to 770 lbs of thrust, with runtime limited only by onboard battery capacity. Brushless Sleipner-engineered motors, lightweight bronze gearlegs with composite Q-Props, ignition protected, splashproof, and joystick-ready via S-Link CANbus.
Commercial Certification:
All commercial-grade thrusters are DNV approved, meeting strict international standards for safety, reliability, and performance.
Service-Friendly Design
Larger models feature optional in-water gear oil change capability, reducing downtime and simplifying routine maintenance.

Learning Center

Sleipner Commercial Thrusters: FAQs

Best Equipment for Commercial Fishing Vessels

Systems and Solutions for Inland Towboats

Safety and Comfort for Crew Transfer Vessels

Locate a Dealer

What's New?

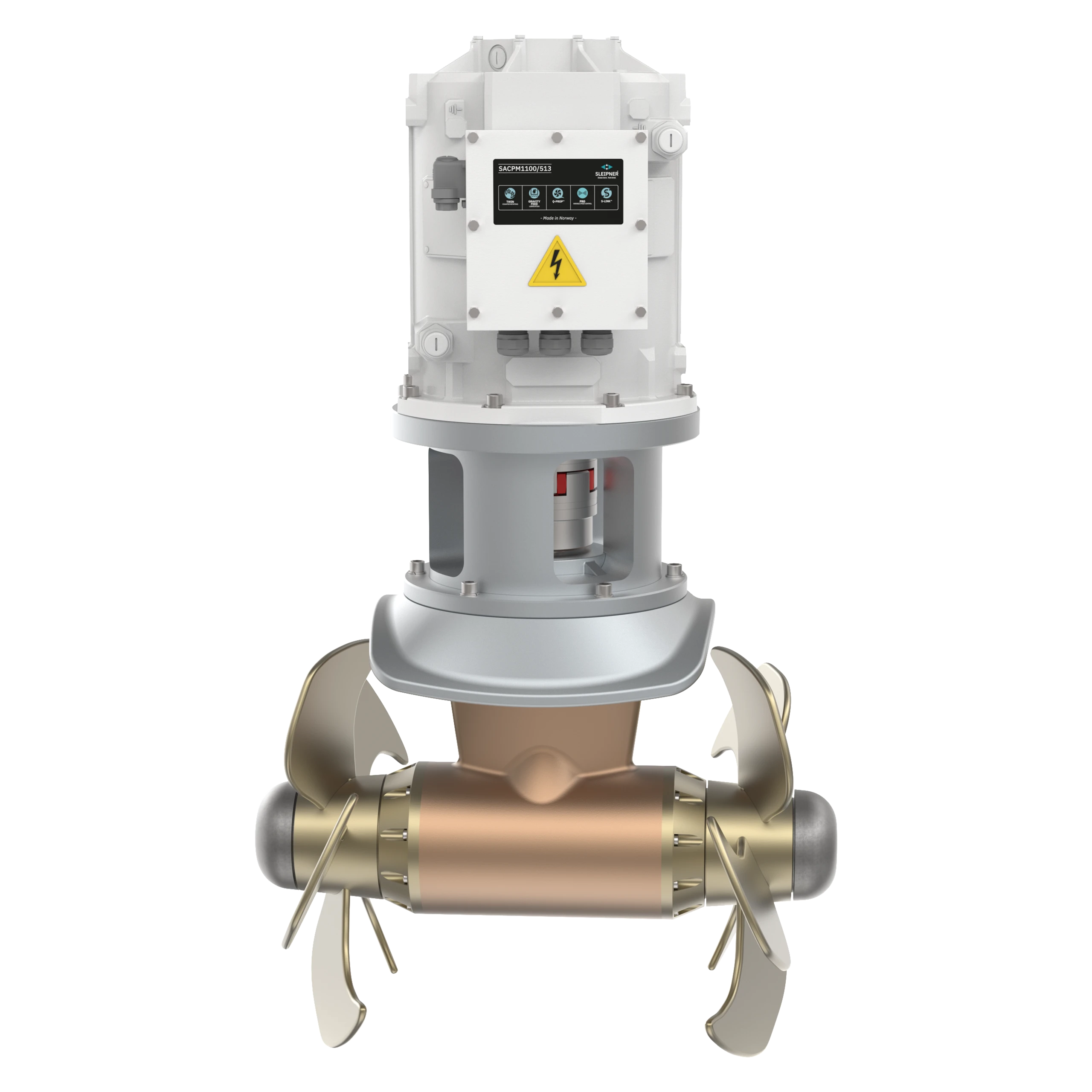

A new range of compact, permanant magnet motors for AC thrusters

Permanent magnet synchronous (PMAC) motors
94–95% efficiency for reduced energy consumption and heat generation
IP65-rated for protection in harsh working environments
40–70% lighter motors compared to standard SAC motors
30–55% lighter complete thruster systems for easier installation and improved vessel balance
Compatible with 380–690V AC generator systems
Compatible with 560–1000V DC battery and hybrid systems
Optional water/glycol cooling system
- Supports seawater or air heat exchangers
- Air heat exchangers can be installed in the thruster compartment (proper ventilation required)

View the complete range of AC thrusters (PMAC version release TBA)

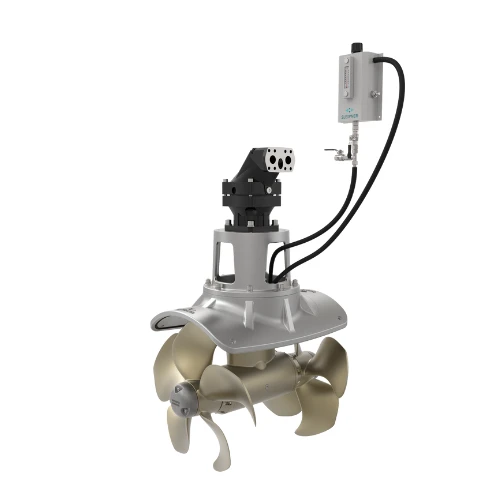

New hydraulic and AC models with up to 2200kg thrust

Available in AC or hydraulic configurations
Built with premium materials and precision engineering
NiBrAl 5-blade Q-Prop™ propellers for high efficiency and reduced noise
Heavy-duty bearings and gears designed for class-approved applications
Innovative in-water oil change system for simplified maintenance
Optional RPM sensor for real-time performance monitoring

View the complete range of hydraulic thrusters (SH2200 coming soon)

Installations

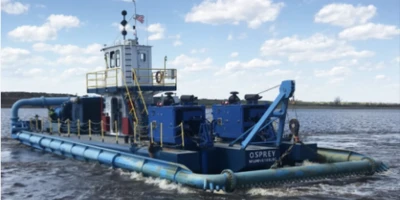

Osprey

Vessel type: Water Injection Dredge (WID)

Vessel data:
LOA: 88'
Year refit: 2022
Yard: St Johns Shipbuilding

Sleipner equipment (refit):

Thruster: SAC420/386

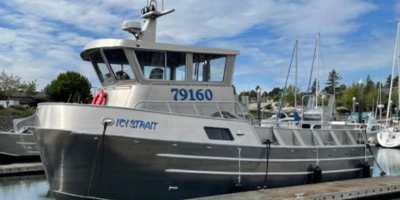

Icy Strait

Vessel type: Fishing Vessel

Vessel data:
LOA: 32'
Year built: 2021
Builder: Next Gen Fabrication/O'Neill Boats (US)

Sleipner equipment (new build):

Bow Thruster: SH240/250TC-U16
Control: SM8960G on/off joystick

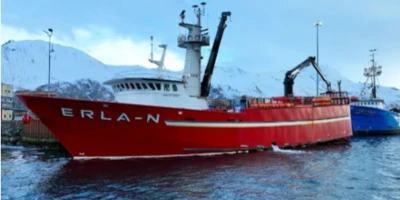

ERLA-N

Vessel type: Fishing Vessel

Vessel data:
LOA: 118'
B: 30'-6"
Service speed: 13 knots

Year built: 2025 Refit
Builder: JT Marine

Sleipner equipment (refit):

Bow Thruster: SAC1100/513-C4H
Control: PJC421-LE90 (x2) dual station

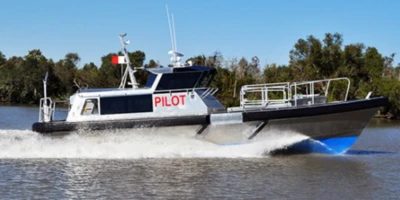

Canaveral Pilots Association

Vessel type: Pilot Boat

Vessel data:
LOA: 45'
B: 30'-6"
Year refit: 2026

Yard: St Johns Shipbuilding (US)
Installer: Florida Bow Thruster

Sleipner equipment (refit):

Bow Thruster: E100/185T-24V
Control: SMPJC211 proportional joystick

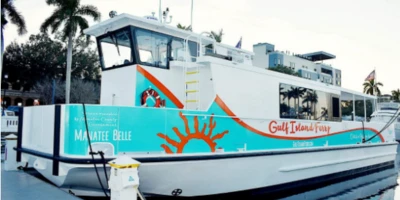

Manatee Belle

Vessel type: Passenger Vessel

Vessel data:
LOA: 62'
B: 16’
Capacity: 91 PAX

Year built: 2025
Builder: Breaux Brothers Enterprises, Inc. (US)

Sleipner equipment (new build):

Bow Thruster: SH320/300TC-U23
Controls: SMPJC221 Single Joystick Proportional ThrustControl

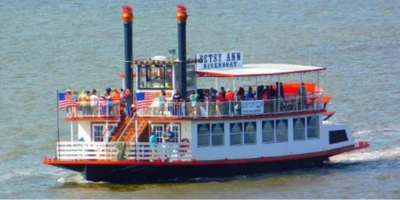

Betsy Ann

Vessel type: Passenger Vessel

Vessel data:
LOA: 75'
B: 20’
Capacity: 150 persons

Year refit: 2024
Yard: Aluma Marine (US)

Sleipner equipment (refit):

Bow Thruster: SH700/412-BA60

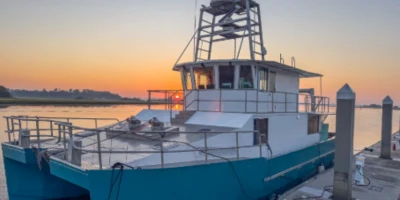

PRECISION

Vessel type: Survey Vessel

Vessel data:
LOA: 63'
B: 25’
Capacity: 10 persons

Year refit: 2025
Yard: Aluma Marine (US)

Sleipner equipment (refit):

Bow/Stern Thrusters: (x4) SH240/250
Controls: JPOS Dynamic Positioning Controller

Sleipner Thruster Resources
