SPA-187070F
Price:$150.00 EachIn Stock (19)
70 Amp Thermal Breaker, Surface Mount

  • Overview
  • Features
  • Specifications

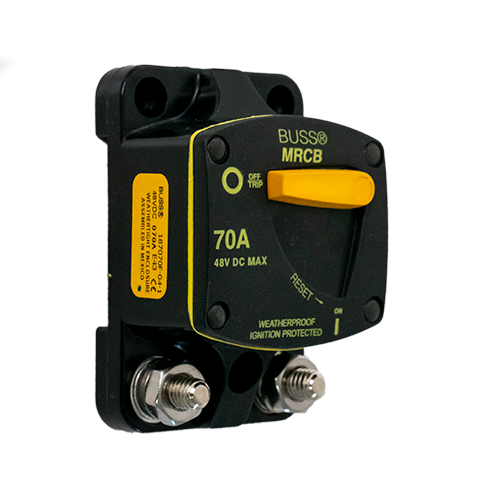

70 Amp Thermal Breaker, Surface Mount

These Bussmann® breakers are available in 50, 70, 110 and 150A sizes and are offered in surface-mount or thru-bulkhead versions.  Thru-bulkhead models include a faceplate and install with a simple 2-1/8" holesaw cutout.  All are IP66 for use in wet locations.  Connections are 5/16" to accept large terminal lugs.  All accept input voltage up to 48VDC.

  • Switchable/Manual reset
  • Single lever
  • Ignition protected
  • Weather proof
  • Mounting hole clearance for 5mm or 10-32 screws
  • Robust 5/16-18 electrical termination studs in corrosion resistive materials.
  • Large clearance around studs to accept large gauge wire lugs.
  • All components meet SAE J1171 Ignition Protection.
  • Vapor proof
NameDescription
Manufacturers Part No187070F-04-1
Dimensions2-5/16” x 3-7/16”
DescriptionBussmann® Thermal Circuit Breaker
Case MaterialThermset polyester
Amperage70A
Ingress ProtectionIP66
Terminals5/16"
Circuit Breaker ClassType III
Amp Rating70 Amp
Approximate Ship Weight (lbs)1
