MDW08R12R
Price:$1,600.00 EachTariff Amount: $104.00
In Stock (1)

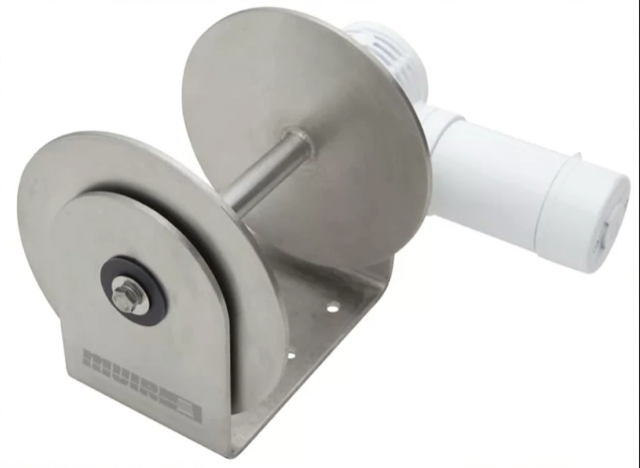

Drum Winch, 12V, 800W Compact System, 316 Stainless Drum & Bracket

Note:
  • Overview
  • Features
  • Specifications

Replaces MDW08R12E

 Anchoring is made easy, fast, and reliable with this Muir drum winch.  This compact anchoring system is designed to suit boats with little or no rode storage.  Muir's DW08 drum winch manages the ground tackle with simple Power UP / Power DOWN operation.  Designed and made in Australia, this winch features a 316 stainless steel drum, running on serviceable bearing center for smooth hassle free operation even under full load.  Tangle-Free rope & chain operation.  5 Year Warranty.


  • Compact design
  • 316 Stainless Steel Drum and Yoke Bracket
  • Large drum capacity
  • Serviceable shaft bearing
  • Included reversing solenoid, circuit breaker, and UP/DOWN Rocker Switch
  • Does not require any more space that the standard drum winch
  • Simple installation
  • Tangle free rope & chain operation

NameDescription
Manufacturers Part NoF331010
Motor Wattage800W
VersionDrum
Warranty5 years
Standard EquipmentMuir Supplied Solenoid Box, Helm Switch, Circuit Breaker
Max Load400 lb (180 kg)
Work Load130 lb (60 kg)
Approximate Boat Size16 - 26 ft.
Max Line Speed100 ft/min (33 m/min)
Amperes @ Working Load80
Approximate Ship Weight (lbs)35
Warning:

ATTENTION CALIFORNIA RESIDENTS

Cancer and Reproductive Harm-


www.P65Warnings.ca.gov

Anchor Windlasses

When you choose Imtra for your anchor windlass solutions, you can relax and enjoy impeccable performance, superior reliability and total peace of mind. At each step, Imtra provides you with the product selection, expertise and customer support that make all the difference.  We start by searching the world for the very best products, including windlasses from Lofrans and Muir, two brands recognized by boat builders for their quality and innovative engineering. In addition to windlasses, we offer a full range of switchgear and accessories to complete your system.

A windlass is the backbone of any anchoring system.  Imtra offers the complete range of anchor windlasses from Lofrans and Muir, the world’s leaders in anchor windlasses.  Choose from horizontal, vertical, electric (DC or AC), hydraulic or manual – every variation to meet your specific needs.

The right anchor windlass makes all the difference.  The anchor windlass on your boat allows you to handle even the most difficult anchoring situations safely and with complete peace of mind.  Choosing the right size and type of windlass for your vessel is the key to trouble-free boating.  Several factors play an important role when selecting a windlass:  vessel type and size, displacement, anchor and chain size, and the anchoring environment.  The range of available models includes horizontal and vertical, manual and electric, and chain or combination rope/chain management.
