LW7921LP
Price:$2,550.00 EachIn Stock (20)
Project 1000/X2, Low Profile, 12v/1000w Chrome, 5/16" Gypsy

  • Overview
  • Features
  • Specifications

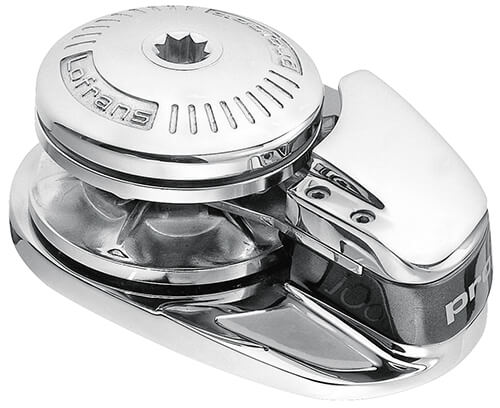

Project 1000 Windlass, 1000W, 12VDC, Chrome, Low Profile, Nickel Plated Gypsy with Rope/Chain Management System. Comes with standard stud length to allow a max clearance of 1-3/4".
The Project 1000 features a high torque series-wound electric motor that delivers immediate lifting power and deployment speed. The Lofrans purpose built gearbox has a built in manual over-ride system in case an electrical problem were to arise.  Lofrans provides a clutch/over-ride handle to make clutch adjustments or to hand crank the ground tackle onboard in an emergency.  The handsome luxury chrome finish will enhance the look of any vessel.

Standard Equipment:
Rope/Chain Management System
Watertight Solenoid Control Box
(2) Covered Footswitches
Manual Override/Clutch Handle

The Project 1000 is available in a variety of different versions for you to choose from. The two primary styles: Low-Profile and Capstan. Within each style, there are two additional options for deck thickness available (see related products):

LWPDB003: Optional deck studs -allows for max clearance of 2-3/4"

LW7921LPXDC: Model with extra deck clearance - allows for max clearance of 5"
  • Topworks Styling:
    Contemporary styling looks great on any foredeck
  • Chromed Bronze Topworks:
    Mirror-like finish is durable and corrosion resistant
  • Simplified Installation:
    Mainshaft and chainpipe holes are the same diameter and can be conveniently cut with hole saw
  • Finger Design:
    Aft-facing stainless pressure finger ensure a smooth trouble-free transition from rope to chain during deployment and retrieval
  • High-Speed Gearbox:
    52:1 gearbox ratio retrieves the ground tackle at a more efficient speed
  • Payout @105 ft/min
  • One-Person Installation:
    The gearbox flange has a keylock to enable a single technician to mount the entire unit (most windlasses require one person above deck and one below during installation)



NameDescription
Motor Wattage1000W
VersionLow Profile
FinishChromed Bronze
Working Load220 lbs (100kg)
Payout Speed105 ft./min.
Retrieval Speed @ No Load79 ft/min
Retrieval Speed @ Working Load52 ft/min
Amperes @ No Load70
Max Deck Thickness1-9/16" (up to 2-3/4" w/4 optional deck studs - LWPDB003)
Rope Sizes9/16 in., 5/8 in.
Amperes @ Working Load110
Approximate Ship Weight (lbs)52
Warning:

ATTENTION CALIFORNIA RESIDENTS

Cancer and Reproductive Harm-


www.P65Warnings.ca.gov

Anchor Windlasses

When you choose Imtra for your anchor windlass solutions, you can relax and enjoy impeccable performance, superior reliability and total peace of mind. At each step, Imtra provides you with the product selection, expertise and customer support that make all the difference.  We start by searching the world for the very best products, including windlasses from Lofrans and Muir, two brands recognized by boat builders for their quality and innovative engineering. In addition to windlasses, we offer a full range of switchgear and accessories to complete your system.

A windlass is the backbone of any anchoring system.  Imtra offers the complete range of anchor windlasses from Lofrans and Muir, the world’s leaders in anchor windlasses.  Choose from horizontal, vertical, electric (DC or AC), hydraulic or manual – every variation to meet your specific needs.

The right anchor windlass makes all the difference.  The anchor windlass on your boat allows you to handle even the most difficult anchoring situations safely and with complete peace of mind.  Choosing the right size and type of windlass for your vessel is the key to trouble-free boating.  Several factors play an important role when selecting a windlass:  vessel type and size, displacement, anchor and chain size, and the anchoring environment.  The range of available models includes horizontal and vertical, manual and electric, and chain or combination rope/chain management.
