M4000CHXM-1/2H
Price:$11,650.00 EachTypically Ships In 12 Days

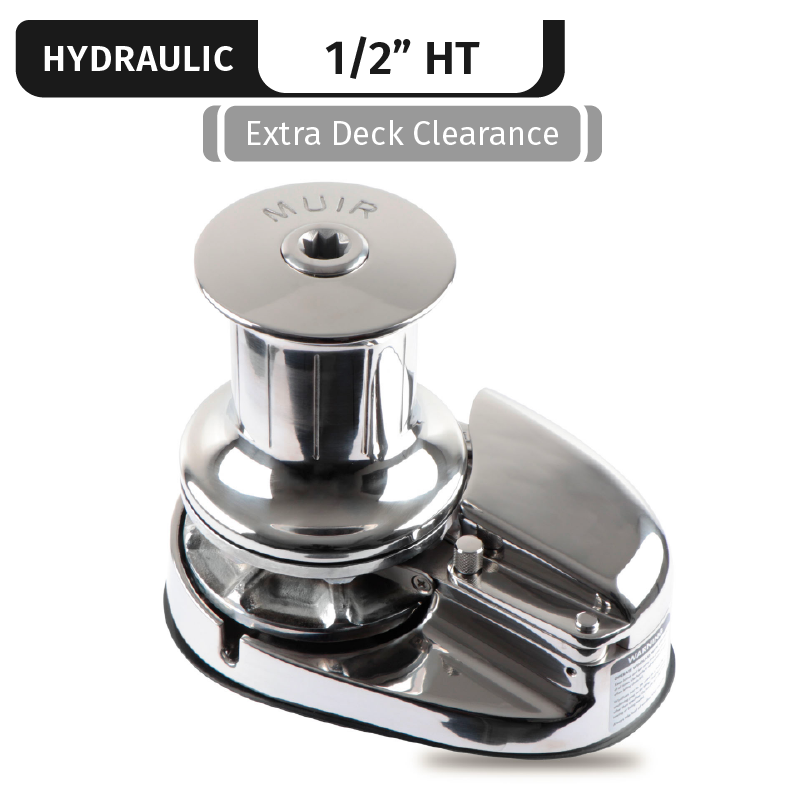

Storm VRC4000, Stainless Steel, Hydraulic Capstan, Vert. Rope/Chain, 7" Studs & MORS, 1/2"HT
Note:
  • Overview
  • Features
  • Specifications

Replaces old item number MSSC4000H501MOR

Manual Operation

The Manual Override System (MORS) provides manual retrieval of the rope and chain or chain only rode by simply applying a standard sheet winch handle to the top of the windlass. T

Fast Retrieval

Using the latest in efficient windlass drives, the Storm series provides effective and rapid anchor retrieval with high speeds of up to 25 metres per minute on some models, whilst also allowing smooth deployment of the anchor rode and chain.

Reduced Installation Time

Storm windlass bases accommodate a quick fit adaptor that reduces installation time allowing the gearbox and motor to be installed directly onto the shaft in any radial position and alleviating distortion between the deck plate and gearbox flange. A sealed shaft protects the transmission below deck.

Rope/Chain Combination

The Rope Chain Management System (RCMS) on Storm windlasses consists of a spring loaded finger & 180 degree stripper arrangement that provides smooth transition for rope-chain combination.

No features specified
NameDescription
Manufacturers Part NoF101190
VoltageHYD
Motor Wattage2000W
Working Load1333 lbs. (606 kg)
Warranty5 years
Hydraulic Pressure2900psi
Hydraulic Flow5.8 gal/min (22L/min)
Max Load4000 lb (1818 kg)
Extra Deck Thicknessup to 7 in.
Amperes @ Working Load110
Manual Override SystemYes
Approximate Ship Weight (lbs)130
Warning:

ATTENTION CALIFORNIA RESIDENTS

Cancer and Reproductive Harm-


www.P65Warnings.ca.gov

Anchor Windlasses

When you choose Imtra for your anchor windlass solutions, you can relax and enjoy impeccable performance, superior reliability and total peace of mind. At each step, Imtra provides you with the product selection, expertise and customer support that make all the difference.  We start by searching the world for the very best products, including windlasses from Lofrans and Muir, two brands recognized by boat builders for their quality and innovative engineering. In addition to windlasses, we offer a full range of switchgear and accessories to complete your system.

A windlass is the backbone of any anchoring system.  Imtra offers the complete range of anchor windlasses from Lofrans and Muir, the world’s leaders in anchor windlasses.  Choose from horizontal, vertical, electric (DC or AC), hydraulic or manual – every variation to meet your specific needs.

The right anchor windlass makes all the difference.  The anchor windlass on your boat allows you to handle even the most difficult anchoring situations safely and with complete peace of mind.  Choosing the right size and type of windlass for your vessel is the key to trouble-free boating.  Several factors play an important role when selecting a windlass:  vessel type and size, displacement, anchor and chain size, and the anchoring environment.  The range of available models includes horizontal and vertical, manual and electric, and chain or combination rope/chain management.
