Price:$1,599.00 EachIn Stock (10)

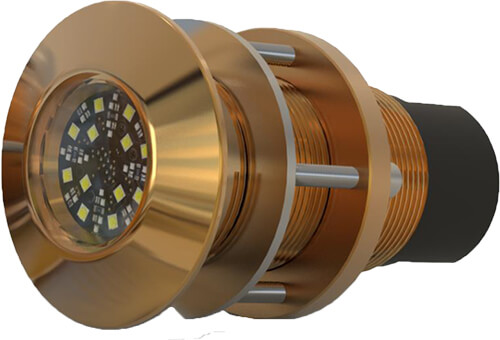

Lumishore TIX403 SUPRA Blue & White 10-30VDC, Internal Driver
  • Overview
  • Features
  • Specifications

The Lumishore TIX403 is the smallest of the Supra Dual Color “Interchangeable” Thru-Hull Underwater Lights. The TIX models are distinguished from the THX models by their super flat bezel profiles and larger shaft diameter which houses the integral driver. These underwater light fixtures are designed for those owners who prefer the integrity of a thru-hull installation with the peace of mind of a removable LED array that can be serviced from inside the boat.

Lumishore's Supra Series provide '2-lights-in-1' by combining the most popular colors in a single high power fixture. Lumishore is the only manufacturer to offer dual-color lights without sacrificing brightness. Available in Surface Mount (SMX),  Thru-Hull standard fit (THX) and interchangeable models (TIX).

  • Recommended for boats 25-80' (7-23m)
  • Flush-fit, suitable for transom, hull side, or bottom mounting
  • Interchangeable array with internal driver
  • Full power Dual-color without sacrificing brightness
  • Use Lumi-Switch for color fade, change speed, brightness control, and strobe
  • 15,300 lumens (6,800 fixture lumens)
  • Wide 110° beam angle for the ultimate flood effect
  • Advanced light engine designed with ATRB (Active Thermal Roll-Back)
  • 3 year warranty

Housing Finish/MaterialMarine-grade Aluminum Bronze
Certifications & ComplianceCE, ROHS, ABS
Output ColorCool White/Blue
Lifetime Hours50,000+ hrs
ClassClass III
Trim Ring (Bezel) Dimensions3.46" (88mm) x 0.31" (8mm) profile height
Trim Ring (Bezel) Finish/MaterialMarine-grade aluminum bronze
Input Voltage10.5-31VDC
Dimensions3.46" (88mm) dia x 5.70" (145mm) shaft length w/cable grommet
Warranty3 Years
Power Consumption6.0A (12V), 3.0A (24V)
Recessed Depth5.35" (136mm)
Lens MaterialBK7 Borosilicate
Ingress ProtectionIP68
Mounting MethodThru-hull, bonding connection required
Beam Angle90°+
Luminous Flux15,300 lms (6,800 fixture lms)
DriverMulti Channel Interchangeable Driver
Install LocationTransom, Bottom, Hull-Side
Electrical ProtectionsATRB, Surge, APR, soft start, reverse polarity, in-rush current, power line noise suppression
Approximate Ship Weight (lbs)4
