Price:$325.00 EachTypically Ships In 3 - 4 weeks
Emden-Medium LED, Stainless Steel, Warm/Blue Slave (Dimmable with Master), 10-30VDC, IP67
  • Overview
  • Features
  • Specifications

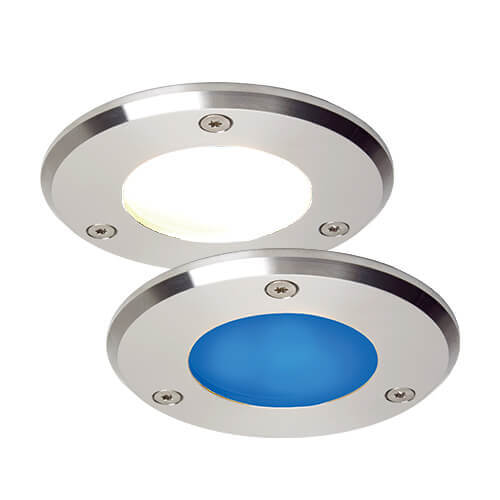

A robust precision-made dimmable Bi-Color LED downlight fixture built for harsh environments.

This "slave" model from the Emden family features both blue and white operation. For dimming control of both colors, a single Emden bi-color "master" must be used in the circuit. In this case a single (or multiple) single throw momentary push button switche(s) are used to control and synchronize the entire circuit. For basic 3-position (white/off/blue) on/off control without dimming, a "master" is not required.

For dimmed circuit: To switch the lights on or off, press briefly on the remote momentary switch. Brightness can be adjusted by holding down the switch. To reverse the dimming phase,  release the switch briefly and press again within one second. The LED light can be dimmmed to a minimum (10%) or pushed to maximum bright-ness (100%), and will remain at that respective level. The light keeps this brightness until the next change. A double-click changes between the blue and white light. Lights switched off can always be switched on to the blue light with a double click. If Emden single color (white) slave lights are used in the group circuit, they will completely turn off when switching to the red mode.

Engineered to the highest standards and milled from marine grade 316 stainless steel, Emden will provide years of maintenance free top performance. Emden's low profile bezel edge and high polish finish provide a style element that will surely be appreciated by the meticulous yacht owner and his/her guests.

  • Machined 316 stainless steel construction
  • Integrated 10-30VDC constant current LED driver
  • Switch between warm white and blue LED illumination
  • Full bi-color dimming when paired with and Emden bi-color master
Housing Finish/MaterialPolished Stainless Steel
Certifications & ComplianceCE, ROHS
Output ColorWarm/Blue
Lifetime Hours50,000 hrs
ClassClass III
Dimmer CompatibilitySee Emden Bi-Color Master (ILPB23303705)
Dimmer Control InterfaceN/O single throw momentary switch
Cut-out Dimensions2.36" (60mm)
Trim Ring (Bezel) Dimensions3.35" (85mm)
Trim Ring (Bezel) Finish/MaterialPolished stainless steel
Manufacturers Part NoILPB23303605
Input Voltage10-30VDC
Warranty3 Years / 1 Year Finish
Recessed Depth0.67" (17mm)
Lens MaterialFrosted glass
Power Consumption3.0W
Ingress ProtectionIP67 (only from the front)
Mounting MethodScrews
Beam Angle90°+
Luminous Flux175 lms
Install LocationWet or dry
Electrical ProtectionsTransient and Reverse Polarity
Correlated Color Temperature (CCT)3000K/Blue
Color Rendering Index (CRI)85
Ingress Protection Rating (IP)IP65+
Approximate Ship Weight (lbs)1


Cancer and Reproductive Harm-
