ILIM57001
Price:$115.00 EachIn Stock (137)

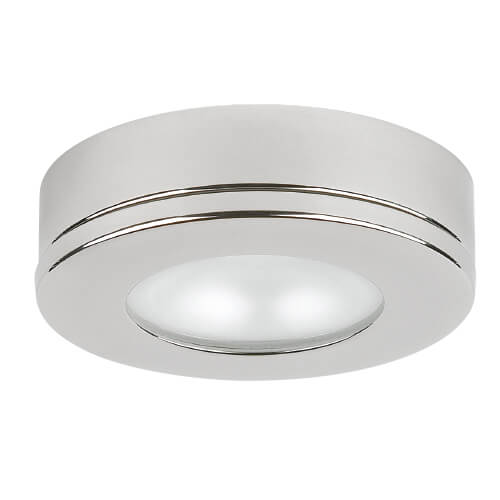

Tide PowerLED w/Base, 10-40VDC, Polished SS , Warm White, 3.2W IP40

  • Overview
  • Features
  • Specifications
Featuring 2-wire power & dimming, Tide easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Tide offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. This model features a "puck" style round base for convenient surface mounting.  It is a good choice for general lighting on smaller boats or as undercabinet lighting for any size vessel.  Made in the USA and covered by a 5-year warranty!
  • Round "puck" base for convenient surface-mounting
  • Twist-on round stainless steel bezel
  • Convenient 2-wire power & dimming
  • Bi-color models can dim using single momentary switch
  • Integrated current controlled drive circuitry
NameDescription
Housing Finish/MaterialBlack Electrophoretic Aluminum
Certifications & ComplianceCE-EMC, ROHS
Integrated SwitchNo
Output ColorWarm White
Lifetime Hours50,000 hrs
ClassClass III
Dimmer CompatibilityILIM80130, ILIM80140
Dimmer Control InterfaceMomentary Push-Button
Trim Ring (Bezel) Dimensions2.86" (73mm) dia
Trim Ring (Bezel) Finish/MaterialPolished stainless steel
Halogen Equivalency10W
Input Voltage10-30VDC
Warranty5 Years / 1 Year Finish
DimensionsSee dimensional drawing
Lens MaterialFrosted glass
Power Consumption3.2W
Ingress ProtectionIP40 (applies only to frontal water exposure, i.e. exposed surface)
Dimming Range5-100%
Luminous Flux122 lms
DriverIntegrated
Install LocationInterior: Surface-Mount
Electrical ProtectionsReverse Polarity, Transient & Spike Protection
Correlated Color Temperature (CCT)2800K (White LED)
Color Rendering Index (CRI)85
Approximate Ship Weight (lbs)1
