SEP Proportional



SRV100/185T-24V
Price:$10,180.00 EachTypically Ships In 11 - 12 weeks
SRV100/185T Vertical retracting thruster kit, 24V, On Off control does not include mounting frame

Note:
  • Overview
  • Features
  • Specifications

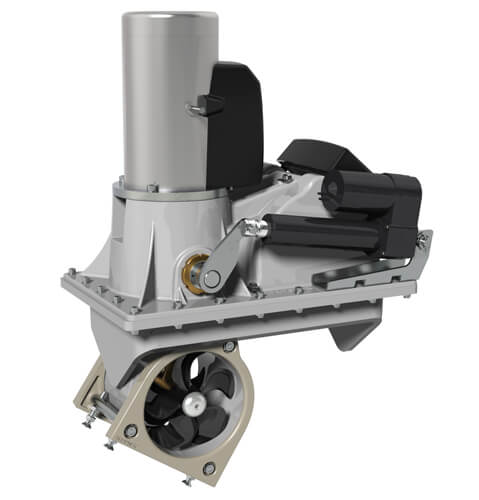

SRV100/185T Vertical Retracting Thruster Kit, 24V, 185mm, 100kg / 220lb

Side-Power's SRV100/185T can be installed as a bow or stern thruster, allowing improved control of the vessel. The DC powered thruster is designed to maximize thrust while minimizing amp draw. Featuring 5-bladed skew back twin rotating propellers, it is purpose designed for the 185mm tunnel. The SRV100/185T is one part of a complete Side-Power thruster system, including tunnel, controls, cables, fuses and battery switches. This model requires a Side-Power supplied frame for installation in composite hulls or a self-made frame for aluminum or steel hulls.

Contact your local Side-Power representative for a system tailored to your needs.



Features & Benefits:

  • Plug and Play S-Link two-way communication control system
  • Compact dimensions
  • Fast deployment time
  • Easy to use control panel (SM8700) with status feedback from thruster (sold separately)
  • Hatch deploys straight out of hull for minimal cutout gaps, creating minimal drag when thruster is retracted
  • Pressure sensor on door automatically retracts thruster when boat speed is too high
  • Thruster lock out: thruster is disabled when fully or partially retracted

Performance:

  • Propulsion technology know-how maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing reducing turbulence in the tunnel and maximizing flow

Installation:

  • Compact sized units to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible battery terminals
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allowing quick and simple changing
  • Sealed gearleg so no messy oil fill-ups needed during installation

Safety and Reliability:

  • Overheat thermal switch on electric motor stops operation, preventing damage to the electric motor
  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Self-locking high pressure contacts extend solenoid life and improve current conduction
  • Extra insulation to help prevent wear and heat damage of internal wiring
  • Non-conductive and self-extinguishing solenoid covers
  • Control panels have child-safe on system and timed shut down from last use
  • 2 Year limited warranty
NameDescription
Thrust @ 21VDC220 lbs (100 kg)
Thrust @ 24VDC256 lbs (116 kg)
Typical Boat Size40-55' (12-17 m)
Propulsion SystemTwin
Tunnel Diameter (I.D.)7.3" (185 mm)
Power @ 21VDC10.5 hp (7.8 kw)
Recommended Fuse Size325 Amps (SMANL325)
Minimum Battery Capacity760 CCA SAE
Approximate Ship Weight (lbs)113
