Contact IMTRA for PricingTypically Ships In 7 - 8 weeks

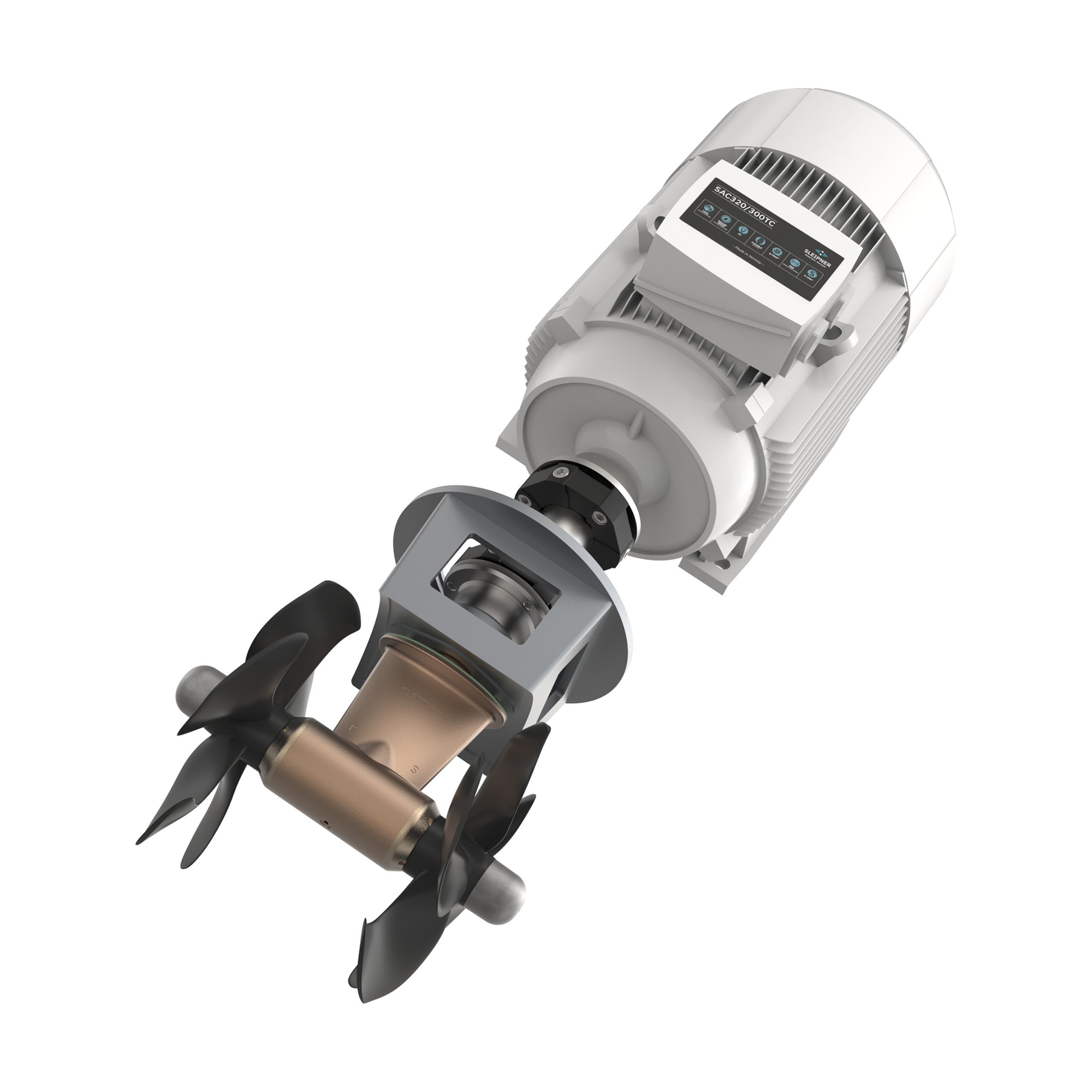

Thruster, AC, 320kg Thrust/300mm tnl, comp prop 208-240VAC Single-phase input power, Horiz. mount
  • Overview
  • Features
  • Specifications

Sleipner SAC240 Thruster, 250mm (9.8") tunnel ID, 240 kg (530 lb) continuous thrust, 208-240 VAC single phase. Horizontal Mount Twin Counter-Rotating Bronze 5-blade "Q-Props" Sleipner's dual, counter-rotating "Q" props provide maximum efficiency, coupled with the streamlined profile of the gear-leg in a 16" tunnel to in a 10" tunnel. The dual props offer equal thrust in both directions, and the Proportional controller system with VFD provides not only smooth acceleration, but also provides the safety of a momentary delay when switching directions to avoid an impact load on the gears. A complete Sleipner engineered system allows full proportional control of the thruster and unlimited run time, all based on the S-Link plug and play system.  Learn more about Sleipner AC thruster systems.  Contact your local Sleipner representative for a system tailored to your needs.

Thruster controlled by S-Link digital bus based system
High quality marine standard flexible motor coupling
Gear leg made from seawater resistant bronze CNC machined in one process to ensure 100% correct tolerances, angles and measurements
Oil filled gear leg with header tank and venting to ensure to ensure long life
Marine grade seals with protective lip, mechanically protected by specific propeller hub design
Hardened and ground precision spiro-conical gears
Propeller shafts with double ball bearings
Anode protection directly on propeller for easy change
VFD, EMC Filter, PDC 301  Proportional Controller included
Continuous Thrust280 kg/620 lb
Typical Boat Size75-110' (22-35m)
Propulsion SystemTwin Counter-Rotating 5-Blade
Approximate Ship Weight (lbs)320


Cancer and Reproductive Harm-



Side-Power AC Electric Thrusters

It is no secret that the most stressful part in boating is when you are in close quarters to other boats.  Maneuvering around crowded marinas and anchorages is a challenge for even the most skilled operator.  Add wind current and ever increasing crowds, maneuvering with confidence is the only way to keep your experience a happy one.

Thruster systems were developed to allow more confident control of a vessel under any conditions and have become a virtual necessity in today’s marine industry.  As technology has improved, thruster systems have become ever more useful with improved functionality and performance.  All along, Side-Power has been at the forefront of thruster development and performance.

AC thruster systems offer the benefit of unlimited run time, allowing for heavier duty usage.  This is important in situations where hydraulic systems are impractical.  All of our AC thruster systems are precisely matched to the generator capacity to maximize the amount of thrust you get from the system.  Each AC motor, either 230V or 380V, is controlled via a Variable Frequency Drive (VFD) to minimize startup loads on the power system and allow for precise proportional control of the thruster.  An Electromagnetic Compatibility (EMC) is also included to help reduce feedback noise on the vessels power system.  In specific cases where sensitive electronic equipment is in use, Low Harmonic Distortion VFD’s are available.  Please contact IMTRA for more information.

All Side-Power AC systems can be mixed and matched with hydraulic thruster systems and DC proportional and retractable thruster systems with seamless integration.  For help picking the right system for your vessel, please contact IMTRA customer support or your local Side-Power dealer.
