RC521011
Price:$191.00 EachIn Stock (41)
Wiper Motor Complete with arm 11-14", blade 11" 12V

Overview
Features
Specifications

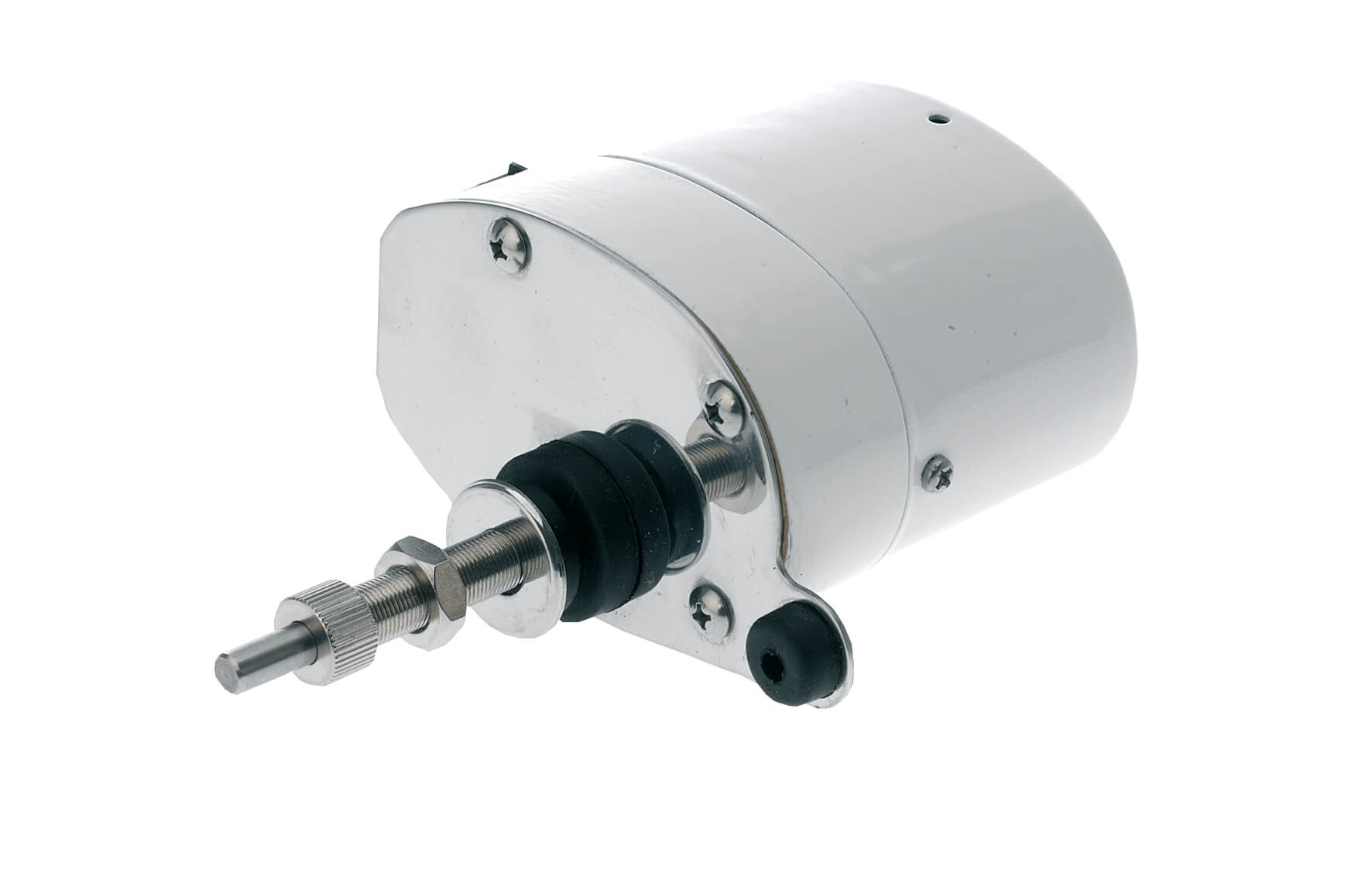

Roca W5 windshield wiper motor, supplied with adjustable wiper arm and wiper blade. The W5 is a compact wiper motor which is suitable for small to medium sized boats. It features a strong motor housed in a white powder lacquered aluminium cover, with a stainless steel 304 shaft and mounting plate.

This Roca wiper motor has an adjustable sweep angle of 90° or 110° and has left or right self-parking options (standard setting is 90° left). The W5 produces 5Nm of torque and is recommended for wiper arms and blades up to 355mm long.

A black stainless steel standard wiper arm is supplied which is adjustable in length between 11-14" (280- 355mm). This arm features a straight connection which fits the supplied wiper blade. The blade features a zinc plated steel backer with a natural rubber profile and is avaialble between 11-14" (280- 355mm).

Roca W5 Wiper Motor Kit:

Voltage: 12V DC
Required Fuse Size: 3A
Motor Dimensions: • 3.2" long x 2.2" wide x 3.2" deep (82mm x 58mm x 82mm)
Spindle Length: 2.3" (58.5mm)
Max Bulkhead Thickness: 1" (25mm)
Spindle Shaft Connection: 6mm Diameter
Maximum Arm Length: 14" (355mm)
Maximum Blade Length: 14" (355mm)

Name	Description
Manufacturers Part No	RC521011
Voltage	12V
Max Bulkhead Thickness	1" (25mm)
Max Arm Length	14" (355mm)
Max Blade Length	14" (355mm)
Fuse	3A
Approximate Ship Weight (lbs)	3

Warning:

ATTENTION CALIFORNIA RESIDENTS

Cancer and Reproductive Harm-

www.P65Warnings.ca.gov

QTY:

ADD TO CART

Downloads

Dimensional Drawing

Product Sheet

Wiper Motors

W10/W12: These proven motors give you reliable performance in all weather conditions. A compact system for windows with a maximum reach of 35" (889mm).

W25 Series: Powered by a 25Nm motor to drive a wiper arm up to 30”. It has a single tapered drive shaft for secure motor/arm connection. A robust system for windows with a maximum reach of 45" (1140mm).

W38 Series: Powered by a 38Nm motor which will drive a wiper arm up to 35” with an equal length wiper blade. This system is ideal for raked back windows which measure up to 55”.

W50 Series: A modern designed wiper system for windows with a maximum reach of 70.5" (1790mm).

Type 1 Series: Built for rough weather conditions. Designed to drive a marine wiper arm up to 29 ½” with a maximum blade of 31 ½”, suitable for windows under 42” high.

Type 1.5 Series: The Type 1.5 wiper series is driven by the strong and compact dual drive 240BS wiper motor. Supplied with fixed length wiper arms up to 900mm (35”) and a blade up to 900mm (35”) in increments of 50mm (2”), this system can easily clear windows up to 1400mm (55”). The wiper arms and blades are made of 316SS to withstand the worst conditions.

Type 2 Series: The Exalto Type 2 wiper series is the premier system for windows greater than 40”, chosen by large yacht and commercial shipbuilders as the industry standard. The 250BS motor is a proven workhorse which can easily drive a robust wiper arm and blade.

Type 3 Series: The largest pantograph system for window up to 88.5" (2250mm) in height.

Motor Mounting Position: Marine wiper motors are usually fitted either directly below or above the window. Below the window is a popular position on newer yachts, as many owners like the appearance of arms running up the glass. This position also allows the arms to be kept out of sight when not in use, even though it may require longer arms to reach the entire area to be cleared. Above the window positioning creates easier access and allows shorter arms to reach the sight-line on sweeping windshields. Often, motor placement is simply determined by where it will best fit into the boat.
