Price:$240.00 EachIn Stock (415)
W12 Wiper Motor, 1.5" Shaft, 5/8" bkhd, White, 12v
  • Overview
  • Features
  • Specifications

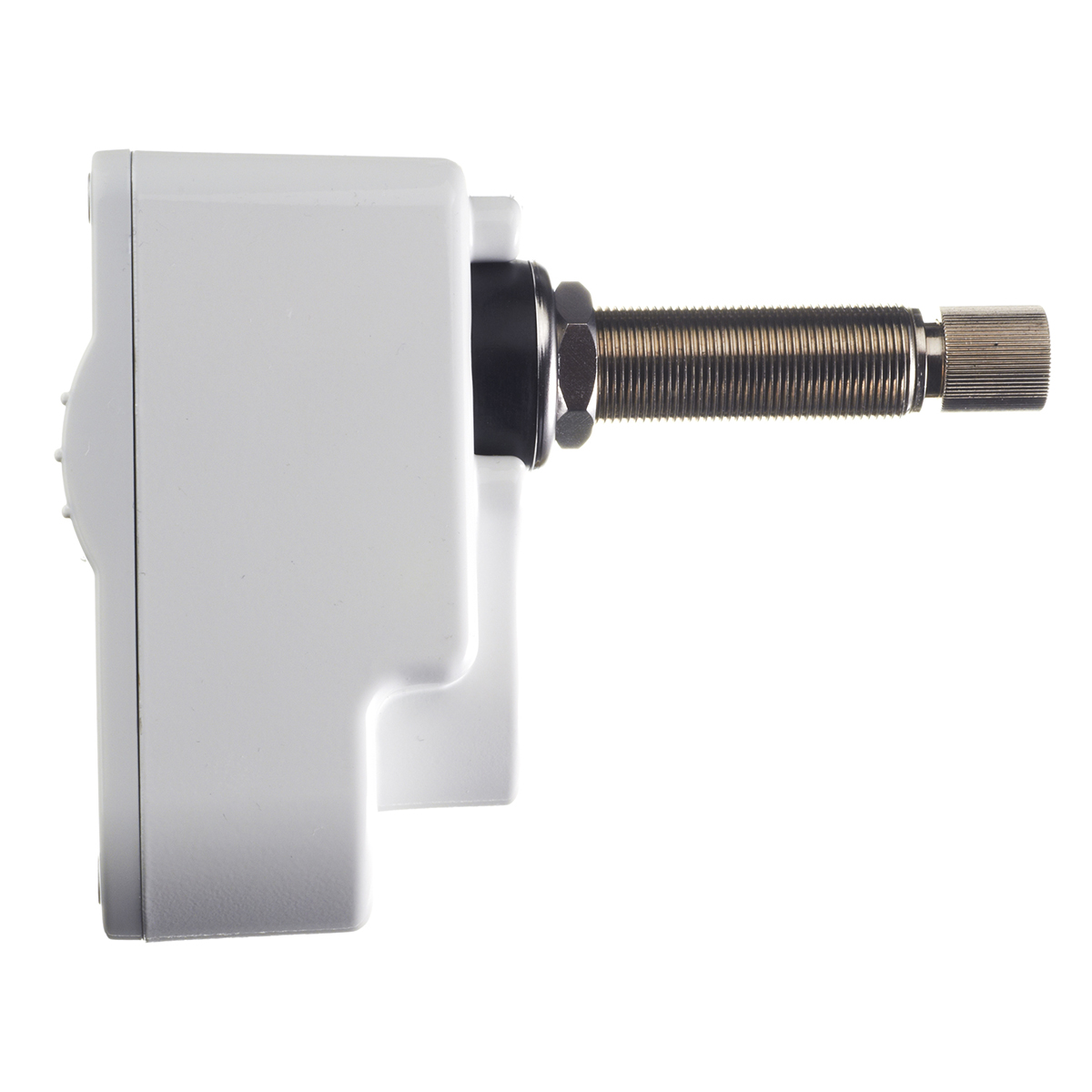

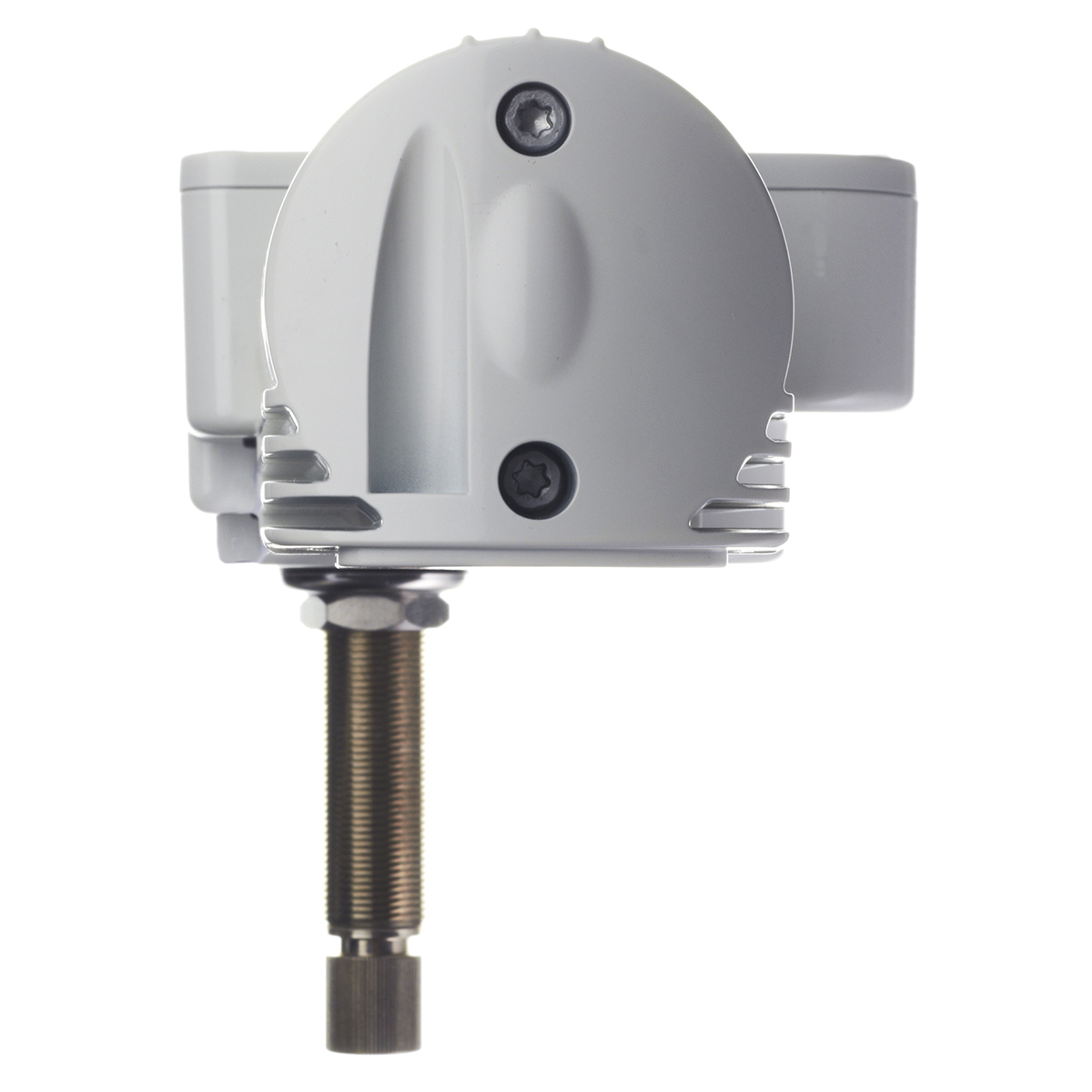

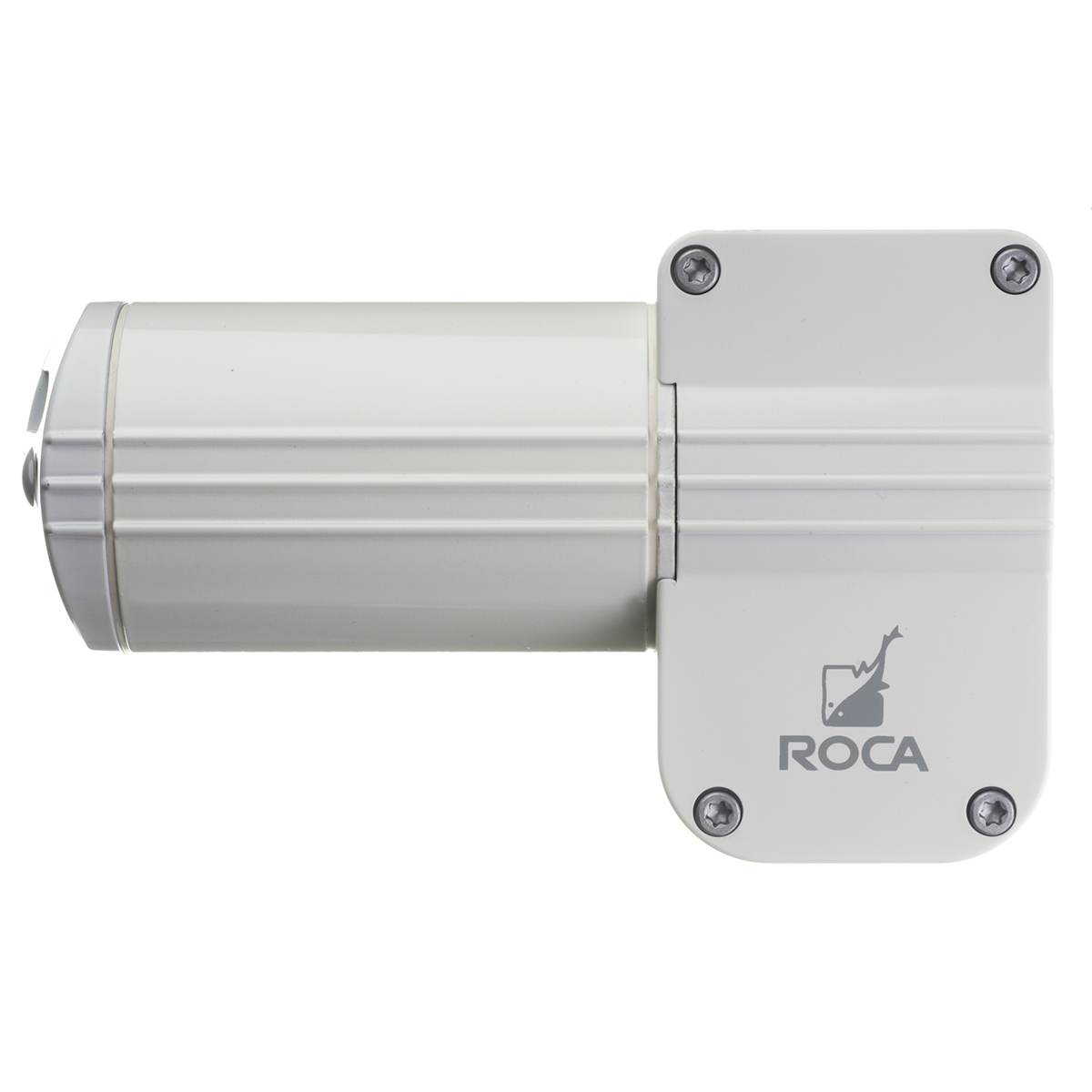

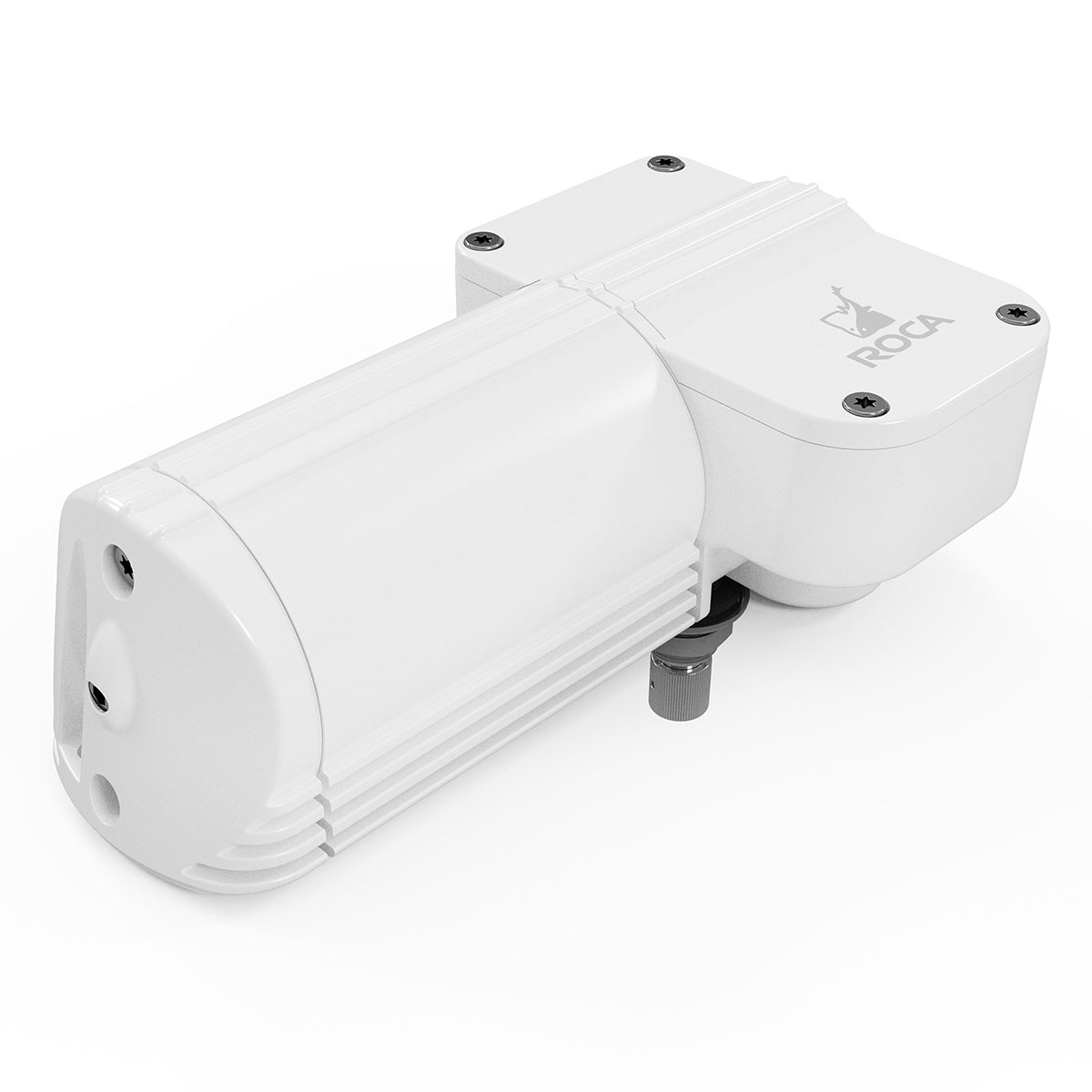

W12 Wiper Motor, 12Nm, Bulkhead Thickness: 5/8 in., Shaft Length: 1.5 in., White, 12V

2-speed, self-parking heavy-duty water-resistant wiper motor, 12Nm. Wiper shaft made of stainless steel. Variable sweep adjustments from 45-110°. EMC protected and rated as an IP65 enclosure. Insulated ground for metal, fiberglass and wooden hulls. Drives a 24" wiper arm and 22" wiper blade.

This item replaces RC533211 and RC530411

  • Stronger motor than equivalent units, 12Nm
  • Water resistant housing (IP65)
  • Stainless steel shaft

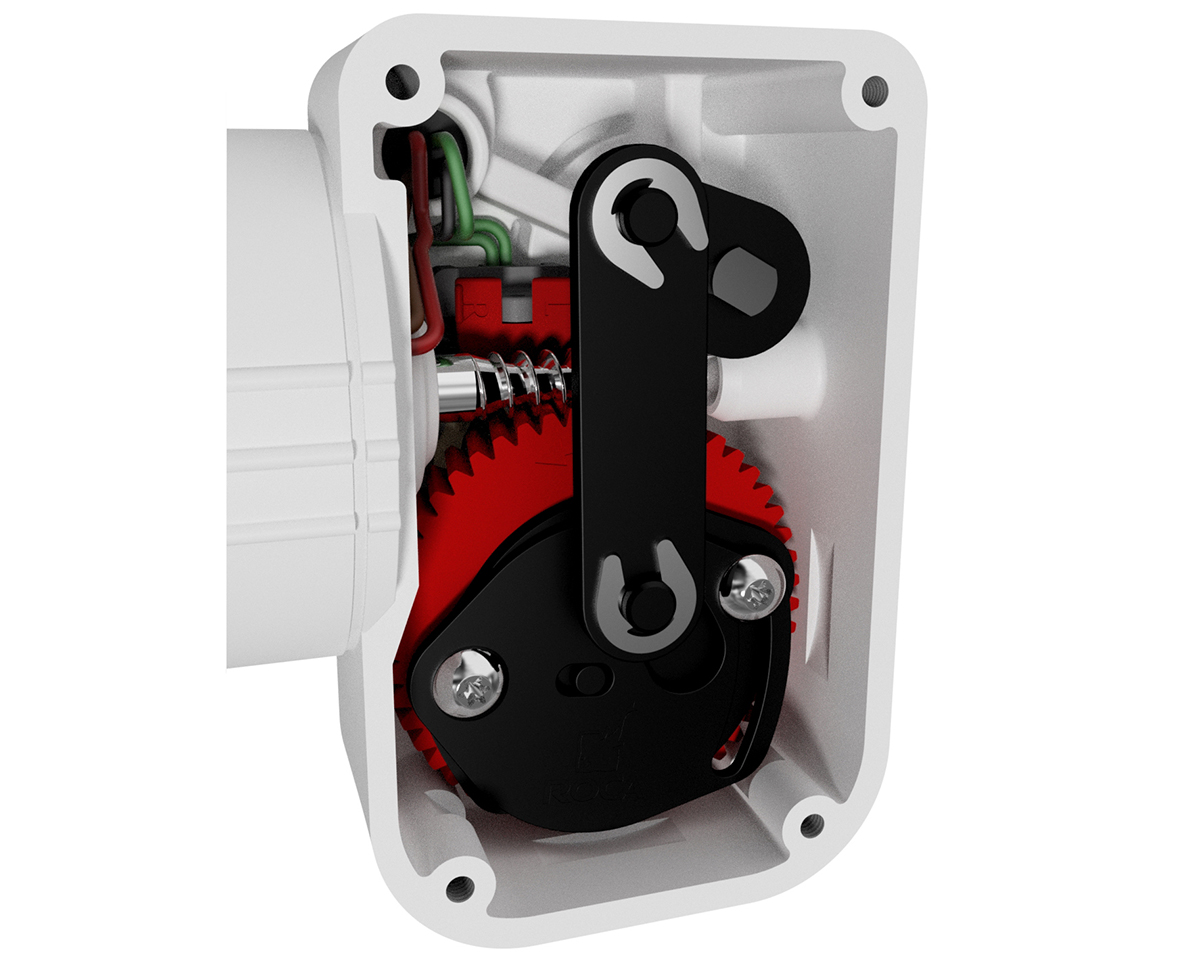

  • Integrated heat sinks for proper and efficient heat management
  • Easy sweep adjustment and park setting
  • 3 year warranty

Manufacturers Part NoRC533011
Ingress ProtectionIP65
Bulkhead Thickness (L1)5/8 in.
Shaft Length (L2)1.5 in.
24 inch Wiper ArmsAll Standard and Heavy Duty W10/12 Arms
22 inch Wiper BladesEX2170CN-EX2175 (must use EX2108K arm) and RC520911-RC520922 (used with all W10/W12 arm)
Variable Sweep Adjustment45-110°
Approximate Ship Weight (lbs)4


Cancer and Reproductive Harm-


Wiper Motors

Betmun coin solana

W10/W12: These proven motors give you reliable performance in all weather conditions. A compact system for windows with a maximum reach of 35" (889mm).

W25 Series: Powered by a 25Nm motor to drive a wiper arm up to 30”. It has a single tapered drive shaft for secure motor/arm connection. A robust system for windows with a maximum reach of 45" (1140mm).

W38 Series: Powered by a 38Nm motor which will drive a wiper arm up to 35” with an equal length wiper blade. This system is ideal for raked back windows which measure up to 55”.

W50 Series: A modern designed wiper system for windows with a maximum reach of 70.5" (1790mm).

Type 1 Series: Built for rough weather conditions. Designed to drive a marine wiper arm up to 29 ½” with a maximum blade of 31 ½”, suitable for windows under 42” high.

Type 1.5 Series: The Type 1.5 wiper series is driven by the strong and compact dual drive 240BS wiper motor.  Supplied with fixed length wiper arms up to 900mm (35”) and a blade up to 900mm (35”) in increments of 50mm (2”), this system can easily clear windows up to 1400mm (55”).  The wiper arms and blades are made of 316SS to withstand the worst conditions.

Type 2 Series: The Exalto Type 2 wiper series is the premier system for windows greater than 40”, chosen by large yacht and commercial shipbuilders as the industry standard. The 250BS motor is a proven workhorse which can easily drive a robust wiper arm and blade.

Type 3 Series: The largest pantograph system for window up to 88.5" (2250mm) in height.

Motor Mounting Position:  Marine wiper motors are usually fitted either directly below or above the window. Below the window is a popular position on newer yachts, as many owners like the appearance of arms running up the glass. This position also allows the arms to be kept out of sight when not in use, even though it may require longer arms to reach the entire area to be cleared. Above the window positioning creates easier access and allows shorter arms to reach the sight-line on sweeping windshields. Often, motor placement is simply determined by where it will best fit into the boat.
