For more than 40 years, Sleipner has set the standard for marine thruster technology, delivering reliable, high-performance maneuvering solutions for the world’s most demanding commercial vessels. Engineered in Norway and trusted globally, Sleipner commercial thrusters are built to perform in harsh operating conditions.

Have commercial thruster questions or need product support? Contact us: [email protected]

Engineered for Maximum Efficiency and Reliability

Every Sleipner thruster is designed with performance, efficiency, and longevity in mind. Key design features include:

• Hydrodynamic gearlegs that minimize drag and resistance, maximizing overall system efficiency

• Clean, streamlined housing design to optimize water flow and reduce turbulence

• Optimized tunnel and propeller geometry for maximum thrust output

• 5-blade bronze Q-Prop™ propellers for:

  • Reduced noise and vibration

  • Increased efficiency and thrust

  • Lower risk of cavitation

  • Smooth, predictable maneuvering

Comprehensive Thruster Solutions for Commercial Applications

Sleipner offers one of the industry’s most complete ranges of commercial thrusters, covering everything from compact workboats to large commercial vessels:

• Hydraulic Thrusters:
  Available in tunnel diameters from 7¼” to 29”, delivering 220 lbs up to 4,800 lbs of thrust for precise, powerful maneuverability.

• AC Thrusters:
  Offered in 10” through 29” tunnel sizes, providing dependable performance for larger vessels and continuous-duty applications. A new Permament Magnet motor option will be available for the larger sizes (700 kg thrust/16" (410 mm) tunnel sizes and up.

• DC Thrusters (E-Series)
  Proportional 24V and 48V DC thrusters in 8½”–12” tunnel sizes, delivering up to 770 lbs of thrust, with runtime limited only by onboard battery capacity. Brushless Sleipner-engineered motors, lightweight bronze gearlegs with composite Q-Props, ignition protected, splashproof, and joystick-ready via S-Link CANbus.

• Commercial Certification:
  All commercial-grade thrusters are DNV approved, meeting strict international standards for safety, reliability, and performance.

• Service-Friendly Design:
  Larger models feature optional in-water gear oil change capability, reducing downtime and simplifying routine maintenance.

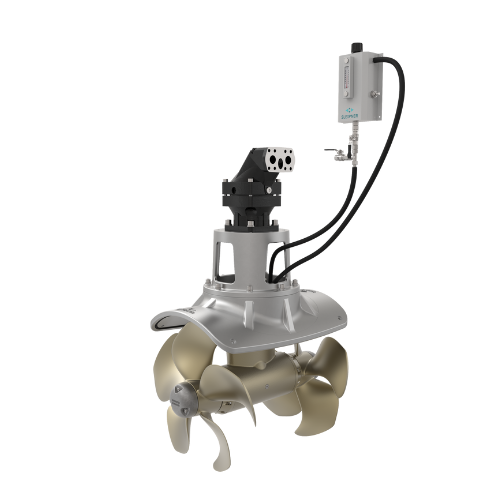

A new range of compact, permanant magnet motors for AC thrusters

• Permanent magnet synchronous (PMAC) motors

• 94–95% efficiency for reduced energy consumption and heat generation

• IP65-rated for protection in harsh working environments

• 40–70% lighter motors compared to standard SAC motors

• 30–55% lighter complete thruster systems for easier installation and improved vessel balance

• Compatible with 380–690V AC generator systems

• Compatible with 560–1000V DC battery and hybrid systems

• Optional water/glycol cooling system

  • Supports seawater or air heat exchangers

  • Air heat exchangers can be installed in the thruster compartment (proper ventilation required)

View the complete range of AC thrusters (PMAC version release TBA)

New hydraulic and AC models with up to 2200kg thrust

• Available in AC or hydraulic configurations

• Built with premium materials and precision engineering

• NiBrAl 5-blade Q-Prop™ propellers for high efficiency and reduced noise

• Heavy-duty bearings and gears designed for class-approved applications

• Innovative in-water oil change system for simplified maintenance
  (fully drains in both horizontal and vertical installations)

• Optional RPM sensor for real-time performance monitoring
  (requires PHC4-xxx-DNV series control panels)

View the complete range of hydraulic thrusters (SH2200 coming soon)
