ZW2012014
Price:$10,390.00 EachIn Stock (3)

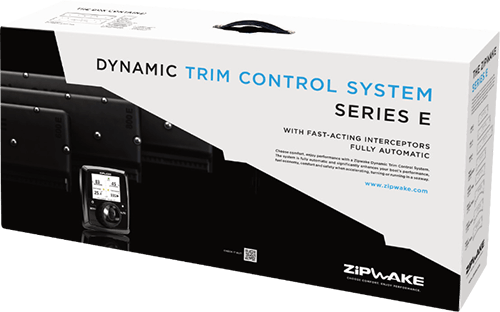

Zipwake Series E Kit Box 600 Chine 23.62" (600mm)

  • Overview
  • Features
  • Specifications
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 6m power cable, 1 control panel with 15m standard cable). Any base installation can be expanded with one center-mounted Series E interceptor or up to two Series S interceptors, without any need for additional connectors or power supply.

  • Zipwake is a fully automatic and active trim control system
  • Dynamically eliminates uncomfortable and dangerous boat pitch and roll
  • Automatically minimizes wave resistance and saves fuel
  • Built-in quality, simplicity and easy expansion, yet affordable
  • 5-10 times faster than conventional trim tabs
  • Built-in GPS, 3D-Gyro and 3D-Acceleromter

NameDescription
Certifications & ComplianceCE, FCC
Max Boat Speed60 knots
Blade Stroke60 mm (2.4 in)
Blade Rate40 mm/s (1.6 in/s)
Thru-Hull Cable FittingConcealed or above waterline
Servo ActuatorSU-S
Cable MaterialPUR
ConnectorM12 5-pin circular
Connector Diameter0.57" (14.5 mm)
Manufacturers Part No2W2012014ZW2012014
Voltage12-32VDC
Power Consumption25W max
Ingress ProtectionIP68, 16' (5 m)
Operating Temperature+32° to +104°F (0° to +40°C)
Storage Temperature-40° to +194°F (-40° to +90°C)
Approximate Ship Weight (lbs)59
