Imtra thruster expert Peter Nolet explains the basics of bow and stern thrusters and how they work.
Since the 1990s, recreational boats have increasingly been equipped with extra propulsion devices that are commonly called bow, stern, or side thrusters. Thrusters are equipped with small propellers that help maneuver a boat sideways rather than forwards or backwards, typically while docking or mooring.
Thrusters can only be used when the boat is moving fore and aft very slowly or not at all. In their most common application, they are located below the waterline in the bow to push the bow of the boat one way or the other, and are therefore called bow thrusters. Additional thrusters are sometimes located in the stern, giving the captain total control of or maneuverability for the boat.
Key takeaways
- Bow and stern thrusters provide sideways maneuverability for boats during docking and close-quarters situations when main engines offer limited control.
- Thruster systems come in various configurations, including tunnel, external, and retractable designs to accommodate different hull types and performance requirements.
- The effectiveness of a thruster depends on proper sizing, installation location, and power source selection (DC electric, hydraulic, or AC electric) based on the vessel's specific needs.
- Regular maintenance of thruster systems, including inspection for marine growth and electrical connections, significantly extends operational life and ensures reliability when you need it the most.
- Advanced thruster control systems now integrate with main propulsion to provide intuitive joystick operation, making complex docking maneuvers accessible even to less experienced captains.
800x250.jpg)
What is a bow thruster?
A bow thruster is a propulsion device installed in the forward section of a boat that provides lateral (sideways) movement control. It consists of a propeller mounted inside a tunnel that runs through the hull below the waterline. When activated, the propeller pushes water through this tunnel, creating thrust that moves the bow to port or starboard without requiring forward motion from the main engines.
Bow thrusters are primarily used for docking, mooring, and maneuvering in tight spaces, especially in challenging wind or current conditions. They're typically controlled by a joystick at the helm station and can be powered by DC electricity, AC electricity, or hydraulic systems, depending on the vessel's size and requirements.
What is a stern thruster?
A stern thruster is a propulsion device located at the back of the vessel that allows for lateral (sideways) movement control of the stern. Like bow thrusters, stern thrusters use a propeller in a transverse tunnel to create sideways thrust, but they're positioned near the stern to control the boat's rear section. When used in combination with a bow thruster, stern thrusters enable complete vessel control, allowing sideways movement, rotation in place, and precise positioning without engaging the main propulsion.
Stern thrusters are particularly valuable on larger vessels (typically over 40 feet), boats with significant windage, or single-engine vessels with limited maneuverability in reverse. They provide captains with more control during docking and close-quarters maneuvering, especially in challenging conditions.
How do thrusters work?
In simplest terms, thrusters are designed with propellers facing in a sideways direction so when they are turned on, they push the bow or stern of a boat sideways through the water, in either direction. If only one thruster is used, for example in the bow, then the boat will also turn and change orientation. If bow and stern thrusters are operated simultaneously, a boat can be moved sideways without changing orientation.
The majority of thrusters have simple on/off controls and deliver full power either to port or starboard as long as they are engaged. Some thrusters are capable of delivering varying degrees of power, called proportional thrusters. These allow you to control the speed at which the thruster pushes the boat sideways. Proportional thrusters are sometimes connected to joystick-operated helm controls, thereby linking the main engine and propeller systems to the thrusters for improved low-speed maneuvering.
What different types of thrusters are used on recreational boats?
Tunnel thrusters are the most common, with a tunnel installed through the bow below the waterline and the thruster is inserted into the tunnel from inside the boat. The tunnel is usually constructed of fiberglass or aluminum tubing, depending on the material of the hull, which both protects the thruster unit and concentrates the thrust from the propeller.
One of the challenges of tunnels is creating a proper radius at each end of tunnel to allow water to be sucked into the tunnel without cavitation (bubbles of air hitting the propeller blades). If cavitation occurs, thrusters can become very noisy and lose up to 25 percent of overall performance. In higher-performance boats, deflectors on the forward side of the tunnel entrances also become important to minimize any speed loss due to turbulence.
External thrusters are typically used when a boat doesn’t have enough space for a tunnel to be installed. Carrying a thruster as an external appendage does create a small amount of drag, dampening performance, particularly on faster boats that reach speeds of 30 knots or more. It can also be a challenge to fit a boat with an external thruster on a boat trailer, and there is, in addition, some potential for damage if you snag a buoy.
![External Thrusters]()

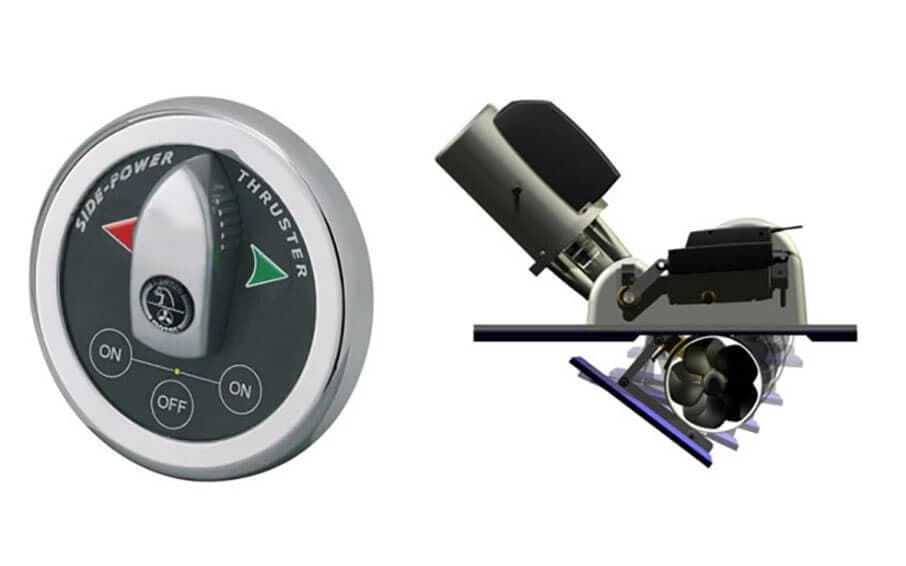

Retractable thrusters, as the name suggests, may be retracted into the hull when not in use, and deployed into the water with an actuator when you need them. This eliminates additional drag, which is something that sailors are often concerned about. It also solves limitations due to draft. For example, if the bow section of a boat is too shallow, any tunnel would be too close to the waterline to be effective. More space is required inside the hull to install retractable thruster, however, along with the need for a mechanical installation.
What are the different types of thruster propeller configurations?
There are three common propeller configurations on thrusters—single, twin tandem, and twin counter-rotating. They are:
Single propellers are the simplest, cost the least, and are well-suited to applications with shorter, smaller-diameter tunnels.
Twin tandem propellers move water more efficiently by using two propellers, making them a better choice when higher thrust is desired.
Twin counter-rotating propellers provide the most efficiency in moving the most water in a given tunnel diameter. As the costs to produce are higher, they are mostly used on yachts 50 feet and larger
What are the different characteristics of thruster propellers?
Thruster propellers are a complex subject as they come with varying numbers of blades, are made of composite and alloy materials, and work within a variety of tunnels. Those with minimal prop-tip clearance – the distance from the end of the prop to the surface of the tunnel – tend to make a thruster more efficient and powerful. Propellers with more prop-tip clearance are quieter but produce less thrust. In general, prop blades are fairly rigid; if the material is too flexible, there are losses.
![Prop Tip Clearance]()
What are the different types of thruster power sources?
DC electricity is the most common power source for thrusters on recreational boats and is relatively easy to install for what is normally low-intensity usage when leaving and arriving at the dock. DC-powered thrusters may have limited run time due to the power draw on batteries and the heat generated in the electric motor, as thrusters with on/off configuration are always run at full speed.
Proportional controllers for DC thrusters developed by Side-Power provide the ability to apply power on a graduated basis, extending run times while reducing both noise and power draw. Coupled with joystick products that link thrusters and primary propulsion and maneuvering systems, the popularity of DC power aboard recreational and commercial boats has steadily increased.
Hydraulic power has the advantage of unlimited run time, making it a favorite in many commercial applications and on large yachts that use hydraulics for other purposes. It can be relatively expensive to install, however, especially on a boat being refit if hoses need to be run to the bow.
AC electricity is the third common power sources for thrusters, and is found mostly in commercial applications. AC requires a large, heavy motor and draws a large amount of power. This requires significant generator power aboard. Advantages of AC electricity are that run time is unlimited and smaller cables are needed. Another is that the motor’s variable frequency drive allows the operator to apply only as much thrust as needed.
Bow and stern thruster maintenance best practices
Maintaining your bow or stern thruster is essential for ensuring reliable performance when you need it most. Regular inspection and maintenance can significantly extend the life of your thruster system while preventing costly repairs. Begin by checking the propeller and tunnel for marine growth at least twice during the boating season, as even small barnacles can reduce thrust efficiency by up to 30%.
For DC electric thrusters, inspect electrical connections annually, looking for corrosion or loose terminals that could cause power loss. Apply dielectric grease to connections to prevent saltwater intrusion. The thruster motor's brushes should be inspected every 2-3 years of normal use, as worn brushes can lead to motor failure at the most inconvenient times.
Hydraulic thruster systems require regular fluid checks and changes according to the manufacturer's schedule. Contaminated hydraulic fluid is a primary cause of system failure, so maintaining clean fluid is paramount for reliable operation.
Winterization tips for bow and stern thruster systems
Proper winterization protects your investment during the off-season. For boats stored in water, consider applying a zinc-based antifouling paint specifically formulated for thruster tunnels and propellers. For DC systems, disconnect and clean battery connections, and if possible, remove the main power fuse to prevent any parasitic drain during storage.
For boats stored on land, flush the tunnel with fresh water before storage to remove salt deposits that can accelerate corrosion. Apply a light coat of water-resistant grease to exposed metal components, but avoid getting any on the propeller blades since it can attract debris.
Final thoughts
Thrusters have transformed recreational boating by removing the stress from docking and close-quarters maneuvering. A quality thruster system represents one of the most valuable investments for your vessel, providing reliable performance for years with minimal maintenance. Whether you're considering a new boat or upgrading your current vessel, bow and stern thrusters deserve serious consideration for the confidence they provide in challenging conditions. For personalized recommendations on the right thruster solution for your specific needs, contact our experienced team at Imtra or explore our complete range of thruster options.
To learn about choosing bow and stern thrusters, read “How to Choose the Right Bow Thruster”.
